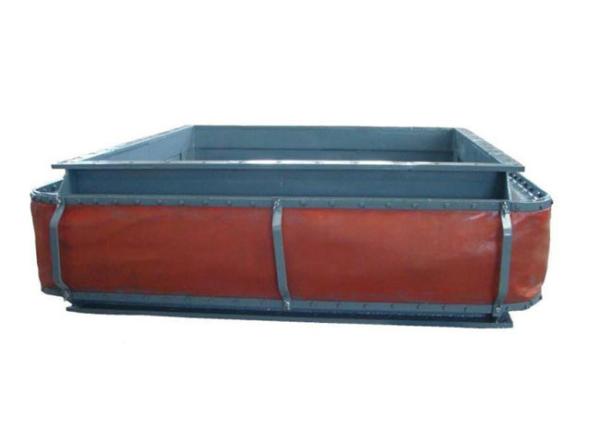

High Temperature Resistant Fabric Duct Expansion Joints Rectangular Compensator

Name: High Temperature Resistant Fabric Duct Expansion Joints Rectangular Compensator
Brand: FIDAK
Price: 1 USD

China High Temperature Resistant Fabric Duct Expansion Joints Rectangular Compensator wholesale

Brand Name : FIDAK

Model Number : NIL

Certification : ISO 9001

Place of Origin : Jiangsu, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 40 tons per day

Delivery Time : 5~15 working days

Packaging Details : Steel frame case sealed by plywoods with each end capped

Warranty : 2 Years

Product Name : Hot Sale Resistant High Temperatureair Duct Fabric

Specification : 1" - 48"

Material : Stainless steel

Surface Treatment : Epoxy

Contact Now

Hot sale resistant high temperatureair duct fabric expansion joint

Product description

The rectangular non-metallic compensator is a flexible component consisting of a composite non-metal mateiral,two pipes (or flanges) connected to adjacent pipeline and insulation materials.It is mainly used to compensate for the displacement caused by temperature, mechanical vibration, and foundation sinking in pipelines and equipment systems that transport micro-pressure dust gas, smoke, gas, and other gases.Pressure range:≤0.05 Mpa;Temperature range: low temperature type ≤200°C, high temperature type ≤ 800°C; Diameter range:Any sizes

Speicifcation

NO	ITEMS	MATERIALS	NO	ITEMS	MATERIALS
NO	ITEMS	MATERIALS	NO	ITEMS	MATERIALS
1	Long connection tube	Carbon steel	7	Filler	Carbon steel
2	Ring plate	Carbon steel	8	Steel wire	SS304
3&4	Screw bolt/Nut	Carbon steel	9	Inner sleeve	SS304/Carbon steel
5	Gasket	Carbon steel	10	Press plate	Carbon steel
6	Astragal	Rubber composite	11	Short connection tube	Carbon steel

High Temperature Resistant Fabric Duct Expansion Joints Rectangular Compensator

Fabric Rectangular Expansion Joint Application

• Gas turbine exhaust pipeline
• Desulfurization system
• Flue gas duct and exhaust system for kinds of industries
• Coal fired boiler, circulating fluidized bed boiler and exhaust-heat boiler for flue gas duct

Product Tags:

fabric expansion bellow

high temperature fabric bellows

High Temperature Resistant Fabric Duct Expansion Joints Rectangular Compensator Images
